Semperit Escalator Handrail

Coloured Handrails

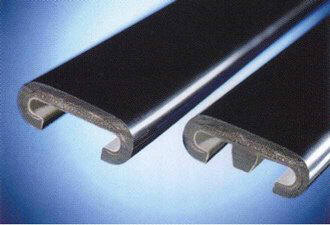

Standard and Vee-Type Handrails

SEMPERIT handrails are designed and developed by SEMPERIT experts according to international specifications and the specific requirements of our customers.

In our laboratories SEMPERIT engineers are constantly working to further improve our handrails. We are co-operating extensively in these efforts with scientific research centres and the world’s major escalator manufactures.

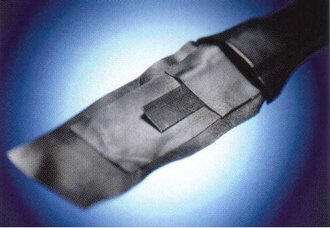

Splice End



SEMPERIT handrails are tailored to your specific application and available in a wide variety of different pre-fabricated styles for quick easy installation.

Handrails are made endless (EL : endless) at our plants, in cases where they can be installed that way and where precise length is known.

If you require open-ended handrails, SEMPERIT offers the following choices :

  • · Both ends prepared ready for splicing (BO : both end finished) when the length is known but handrail cannot be installed endless.

  • · One end with a prepared end and the other fully cured (EO : one end finished) if the exact length has not been determined.

  • · Both ends fully cured (BG : both ends cut square) when the precise length is not known and where handrails are cut from reels.

 SEMPERIT SERVICE INCLUDES:.

· Support of our customers in specifying the right handrail set up procedures to ensure best performance.

· Supplying cleaning and coating liquids to ensure optimum appearance during the whole life span of SEMPERIT handrails.

· Splicing and repair of our handrails by our experts on site to ensure shortest possible downtime of your escalators and moving walk-ways.

· Supplying portable moulds, splicing tools and splice kits for your field splice team.

· Delivering handrails with specially prepared ends to ensure short replacement time—from 1 m inserts with both ends prepared to 200m handrails on a drum.

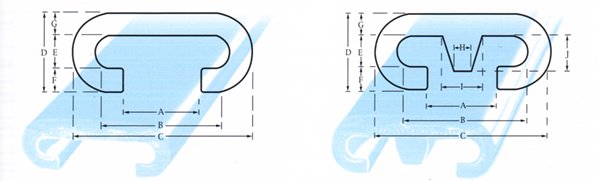

Cross Sectional of Standard Handrail                 Cross Sectional of Vee-Type Handrail

TYPE

A

B

C

D

E

F

G

H

I

J

100

33

62

82

34

12

10

12

-

-

-

300

42

68

88

35

15

10

10

-

-

-

400

38

63.5

82.5

35.5

16

10

9.5

-

-

-

600

39

62

80

28

10.6

8.5

10

-

-

-

T00

37.5

63

80

28

10

8

9.5

-

-

-

800

38

60

76

28

9.5

8.5

10

-

-

-

320

42

68

88

35

15

10

10

7

18

18

T87

37.5

63

80

28

9.6

9.6

10.5

10

18

13

Dimensions in mm

Download product brochure (PDF)

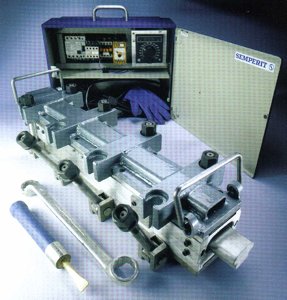

Portable Mould and Splicing Tools
