Load Sensors






Since 1985 MICELECT's in-house research and development has produce highly reliable load weighing devices for the elevator industry, leading to our actual predominant position within the Spanish and European markets.



MICELECT has the necessary technical competences and resources to design, develop and manufacture special load control solutions suited to special customer needs.



MICELECT has been able to combine excellence in product design, precision and quality with very competitive prices.


Unilift Components Pte Ltd is proud to be the official distributor of MICELECT products in the Asia Pacific region.

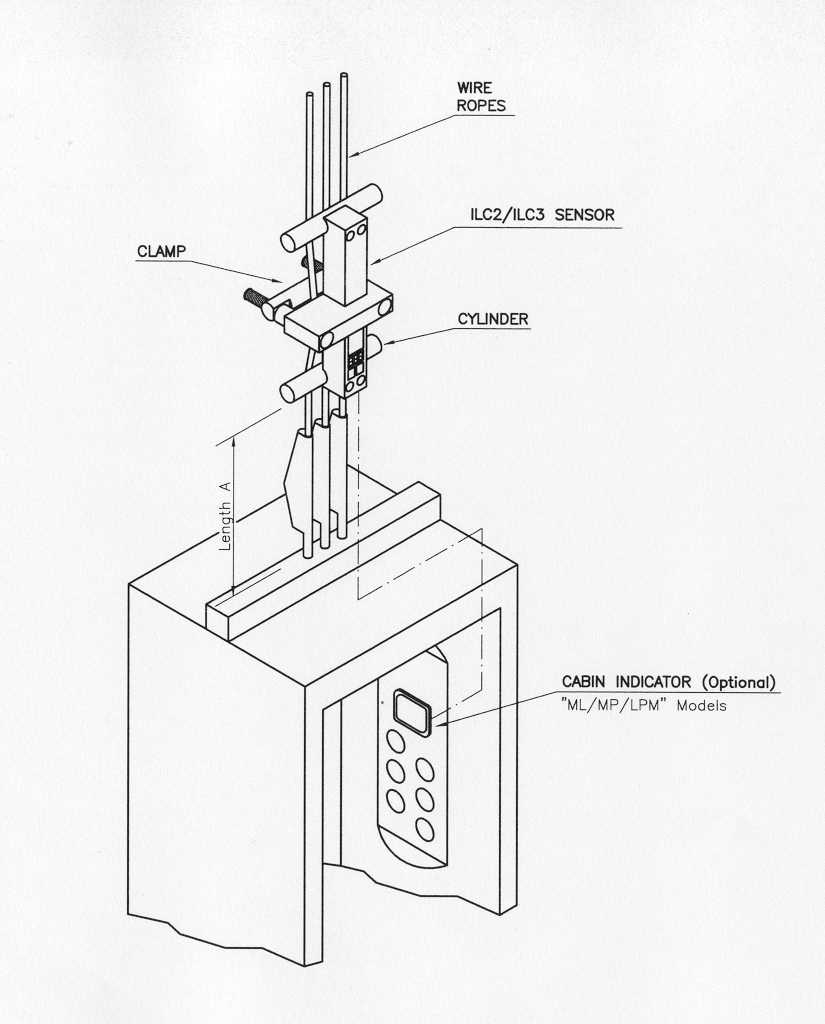

Installation

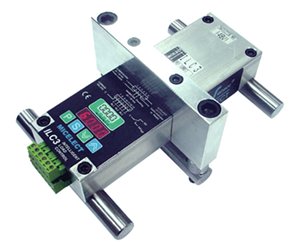

The ILC3 Intelligent wire rope sensor provides the most easy and precise method to control the load in traction elevators. Its easy installation (5 min) and calibration through the diameter of the ropes makes it the perfect device for modernizations as well as for new installations.

Specifications

Wire rope electronic sensor * 3 output relays

Auto setup * 6000 kg / 10000 kg versions

4 digit display *Optional outputs

Analog output (0-20, 4-20, 0-24 mA)

Wire rope electronic sensor *3 output relays

Auto setup *6000 kg / 10000 kg versions

4 digit display *Optional outputs

 Cabin Indicator  - RS-485

Analog output (0-20, 4-20, 0-24 mA)

WR

Traction-compression load cell

Strain gauge load cell

Environmental protection IP 65

Up to 800 kg

Easy to install



SPB

Designed to be installed in the hydraulic circuit of the lift.

2 output relays

Auto setup

Up to 99,9 bar

3 digit display

CAB 800

Designed for installation under cabin frame

Compression load cell

Strain gauge load cell

Up to 800 kg

Easy to install





Installation

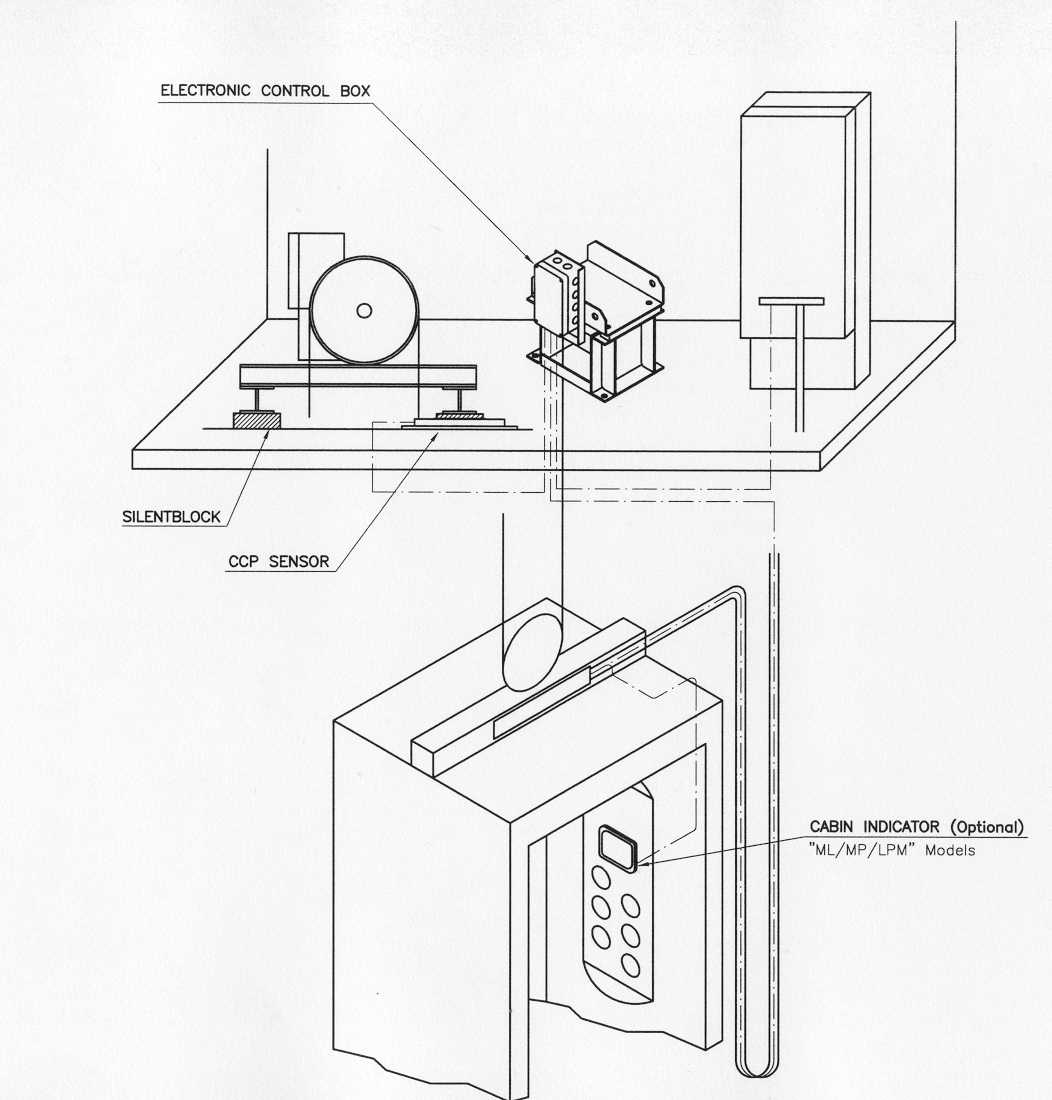

CCP

Specially designed for installation under machine bed-frame

Compression load cell

Strain gauge load cell

2000 or 4000 kg

Easy to install





Installation

LM3D

Programmable electronic control unit designed to control the weight with different Micelect sensors (CCP, LMC, CAB and WR)

3 output relays

Auto setup

4 digit display

Optional outputs

 Cabin indicator

 RS-485

 Analog output (0-20, 4-20, 0-24 mA)

MW1

Portable electronic weighing system

Automatic calibration

Digital display shows weight in steps of 1 Kg

All elements contained on a suitcase with a trolley

Environmental protection IP 65

Versions for 4000, 6000 and 10000 Kg

Ni-Cd batteries (last 4 hours)

Cabin Indicators inform the passengers about the weight variations in the cabin. Overload is shown by a blinking light  or LEDs and the sound of a buzzer.


Download product brochure (PDF)
